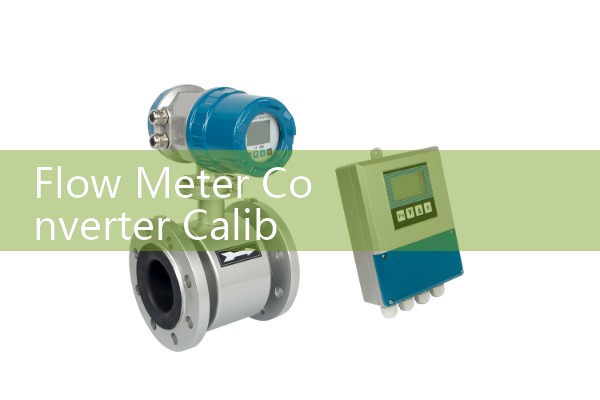

Flow Meter Converter Calibration: Setting K-Factors and Pulse Scaling on Digital Displays
Quick Answer: Flow meter converter calibration sets the K-factor and pulse scaling so a digital display reads correct flow. A wrong K-factor on a magmeter, vortex meter, or oval gear meter can shift total flow by 3 to 8 percent. Match the K-factor from the calibration certificate to the converter input and set pulse scaling to the PLC or display input before commissioning.
K-Factor and Pulse Scaling in Plain Terms
K-factor is the number of pulses per unit volume or mass. A DN50 electromagnetic flow meter may have a K-factor of 200 pulses per liter. A vortex meter on steam may have a K-factor near 10 pulses per cubic meter. Pulse scaling is the divider or multiplier inside the converter that turns raw pulses into a number the display, PLC, or totalizer can read.
Digital displays do not guess these values. They accept the number you enter. If the converter sends 200 pulses per liter but the display expects 100, the totalizer reads half the real flow. This is why calibration starts with the meter certificate, not with the display manual.
Where Technicians Get Stuck
Most engineers skip this part. The meter converter has K-factor, pulse width, pulse scaling, and unit settings. The display has its own input scaling. On site, the two are often mismatched. A water plant in Vietnam reported a 7 percent totalizer error because the converter pulse output was set to 1 pulse per liter and the PLC input was scaled for 10 pulses per liter.
We have seen this on customer sites many times. The flow rate on the local display is correct. The remote totalizer is wrong. The cause is not the meter sensor. The cause is a pulse scaling mismatch. Check the converter output first, then the display input, then the cable length.
K-Factor Setup for Magnetic, Vortex, and Oval Gear Meters
K-factor is not the same across flow meter types. A Silver Automation Instruments electromagnetic flow meter on a DN100 line may have a K-factor of 0.5 pulses per liter. A small oval gear flow meter for diesel may have a K-factor of 1000 pulses per liter. A vortex flow meter on compressed air may have a K-factor of 35 pulses per cubic meter at 20 °C and 7 bar.
Read the calibration certificate. Enter the K-factor into the converter. Some converters accept a six digit number. Some accept a decimal point. Some converters store K-factor as pulses per liter, pulses per gallon, or pulses per cubic meter. Set the unit first, then the number, then the output type. A PT100 temperature input or a 4-20 mA HART output does not change the K-factor, but it can confuse the display if the converter unit is not selected.
Pulse Scaling on Digital Displays
Digital displays often use a pulse divider or a pulse multiplier. Suppose a vortex meter sends 1760 pulses per cubic meter. The display only accepts up to 1000 pulses per second. You set the divider to 2 and the display sees 880 pulses per cubic meter. Then the display must multiply by 2 to show the correct volume.
In practice, write down three numbers before you touch anything. The raw K-factor from the meter certificate. The pulse output scaling from the converter menu. The display or PLC input scaling. If these three numbers do not line up, the totalizer will drift. A paint manufacturer in Southeast Asia found a 4.2 percent drift after six months because the display multiplier was set to 1.002 instead of 1.000.
Calibration Steps for a Flow Meter Converter
Start with a zero flow condition. Vent the pipe and wait until the display reads 0.0. For a DN15 Coriolis mass flow meter, you may need to zero the sensor at operating temperature and pressure. After zero, set the flow unit to kg/h or L/h. Then enter the K-factor from the factory certificate.
Set the pulse output to match the external device. If the PLC expects 10 pulses per liter and the meter send
Then run a known volume. Use a calibrated test vessel or a master flow meter. Compare the display total to the reference total. If the deviation is more than 0.5 percent on a Coriolis meter or 1 percent on a vortex meter, adjust the K-factor. Do not adjust more than 2 percent without checking the sensor grounding, installation, and cable shield.
Common Field Issues and What to Check
A customer in Oman had an electromagnetic flow meter showing constant flow when the pump was off. The converter was not zeroed and the empty pipe detection was not enabled. After enabling empty pipe detection and zeroing the converter, the display read 0.0. A customer in Mexico had a vortex meter reading double flow because the pulse divider was set to 1 and the display input was configured for 2 pulses per unit. The fix took ten minutes after the correct pulse scaling was entered.
If the display cuts out above 50 percent flow, look at the pulse width. Some converters default to 1 millisecond. A PLC input may not see that. Set the pulse width to 5 or 10 milliseconds for long cable runs. If the totalizer only moves in steps of 10 liters, check the pulse scaling and the display decimal point. The converter may be sending the correct total, but the display may be rounding the value.
When to Send the Converter Back for Calibration
If the K-factor was entered correctly and the pulse scaling is correct but the meter still drifts, send the converter and sensor in for a bench calibration. Silver Automation Instruments offers calibration for magnetic, vortex, Coriolis, and oval gear meters. We can test the converter with a known frequency input and compare the output to the calibration certificate. Send us your flow range, pipe size (DN), fluid density, viscosity in cP, and conductivity in µS/cm for a proper check.
For seawater desalination plants, use a magnetic flow meter with a conductivity above 5 µS/cm. For low conductivity fluids like demineralized water, a Coriolis meter is a better fit. The converter calibration still follows the same K-factor and pulse scaling rules.
FAQ: Flow Meter Converter Calibration and Pulse Scaling
What is the difference between K-factor and pulse scaling? K-factor is the number of pulses per unit of flow from the meter. Pulse scaling is the divider or multiplier inside the converter or display. They must match for correct total flow.
How do I find the K-factor for my flow meter? Read the calibration certificate that came with the meter. The K-factor is listed in pulses per liter, pulses per gallon, or pulses per cubic meter. Some meters also store it in the converter menu.
Why does the display total not match the PLC total? Check the pulse output scaling in the converter and the input scaling in the PLC. A mismatch of 10 to 1 or 2 to 1 is common. Set both to the same pulse value before adjusting the K-factor.
Can I change the K-factor without a flow rig? Yes for small corrections up to 2 percent. Use a known volume test or a master meter. For larger corrections, check the sensor installation, grounding, and cable shield first.
Does a 4-20 mA HART output also use the K-factor? The 4-20 mA HART output is scaled separately. The K-factor mainly affects pulse output and totalizer. The analog output uses the 20 mA flow rate setting from the converter menu.
Send your flow range, pipe size (DN), fluid viscosity in cP, conductivity in µS/cm, and the current K-factor to Silver Automation Instruments. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. See flow-meter.com.au for flow meter converter options and calibration support.
