Best Flow Meter for Produced Water and Condensate: Sourcing Heavy-Duty Petroleum Tools
Quick Answer: Produced water lines usually need a full-bore electromagnetic flow meter because the water is conductive and often dirty. Condensate and light hydrocarbon streams need a Coriolis mass flow meter for direct mass flow, density, and temperature data. Choose ATEX Zone 1 or Zone 2 approvals, 4-20 mA HART output, and 316L stainless steel wetted parts for oil field service.
Silver Automation Instruments supplies flow meters for oil and gas operations across Southeast Asia, Australia, the Middle East, Latin America, and Africa. We have seen many produced water and condensate measurement failures that started with the wrong meter type. This article gives you a direct selection guide for buying or replacing meters in upstream, midstream, and downstream petroleum applications.
Why Produced Water and Condensate Need Different Flow Meters
Produced water is not clean water. It carries chlorides, sand, oil traces, scale inhibitors, and sometimes hydrogen sulfide. Conductivity usually falls between 1,000 µS/cm and 200,000 µS/cm. That range works well for an electromagnetic flow meter. Condensate is different. It has very low conductivity or none. So a magnetic flow meter cannot measure it. Condensate is also a light hydrocarbon with density from 600 kg/m³ to 800 kg/m³ depending on pressure and temperature. A Coriolis mass flow meter handles that range in kg/h or t/h without separate density input.

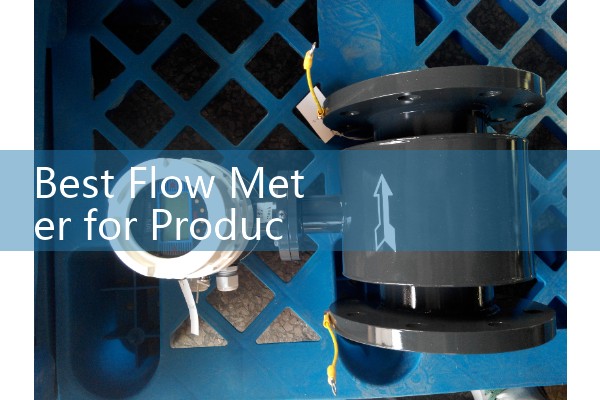

Electromagnetic Flow Meter for Produced Water
An electromagnetic flow meter from the Silver Automation Instruments EMAG series works best for produced water reinjection, disposal wells, and produced water transfer lines. We recommend a full-bore model with PTFE or PFA liner, 316L electrodes or better, and integrated earthing rings. Sizes from DN15 to DN600 cover pilot lines to main transfer headers. If the line has oil slugging or gas pockets, use empty pipe detection and install the meter horizontally with the electrodes in the horizontal plane.
Output options include 4-20 mA HART, pulse, and RS485 Modbus. For well pads and hazardous areas, choose ATEX Zone 1 or IECEx certification. In practice, most engineers skip the clamp-on battery version for permanent produced water measurement because liner and electrode stability are more predictable. A customer in Oman last year replaced three mechanical totalizers on produced water lines with DN100 electromagnetic flow meters. The old meters jammed from black sand. The new meters needed no filter and no straight run correction.
Coriolis Mass Flow Meter for Condensate
Condensate flow measurement is harder because condensate can flash, entrain water, and change density with pressure drops. A Coriolis mass flow meter from the Silver Automation Instruments CMF series gives direct mass flow in kg/h, density in kg/m³, and process temperature in °C. You do not need a separate flow computer for mass balance. For a stabilised condensate export line, a DN50 or DN80 Coriolis meter with 316L stainless steel tubes is common. Accuracy of 0.2 percent of rate or better is normal for allocation and custody transfer.
If the stream has dissolved gas and pressure drops downstream, install the meter upstream of the pressure letdown valve. That keeps the
Vortex, Ultrasonic, and Oval Gear Meters for Specific Cases
Some treated produced water lines have very low conductivity below 5 µS/cm. In that case a magnetic flow meter will not work. A vortex flow meter can measure deionised produced water, but it needs a minimum flow velocity. An ultrasonic flow meter with clamp-on sensors can be a good temporary check on existing pipes. We do not recommend it for heavy emulsion or sand-laden water. Oval gear flow meters work for diesel, chemical injection, and high viscosity crude oil, but they are not the first choice for produced water with solids because the gears can jam.
Sourcing Heavy-Duty Petroleum Tools from Silver Automation Instruments
We are Silver Automation Instruments. We supply flow meters, pressure transmitters, and paperless recorders from our company in China, with support for customers in Southeast Asia, the Middle East, Latin America, Africa, and Oceania. For produced water and condensate projects, send us the pressure in bar, temperature in °C, pipe size in DN, flow range in m³/h or kg/h, and fluid conductivity if known. Tell us if the area is ATEX Zone 1, Zone 2, or safe area. We will quote a model with the right liner, electrodes, process connection, and output.
Contact us by Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. A typical inquiry includes the fluid type, solids content, viscosity in cP if known, and whether the meter is for local display or remote reading. For the full product range, visit flow-meter.com.au.
FAQ
Which flow meter is best for produced water with sand and oil traces?
A full-bore electromagnetic flow meter with PTFE liner and 316L electrodes works best. Avoid moving parts because sand and scale will jam mechanical meters.
Can an electromagnetic flow meter measure condensate?
No. Condensate has very low or no conductivity. Use a Coriolis mass flow meter for condensate and light hydrocarbon liquids.
What output signal should I request for oil field flow meters?
Request 4-20 mA HART as the main output. It carries flow, density, and temperature data over one pair of wires. Add pulse or RS485 Modbus if your RTU or PLC needs it.
What approvals do I need for produced water and condensate metering?
For well pads and gas processing plants, specify ATEX Zone 1 or Zone 2 and IECEx. Also check the flange rating because produced water lines often run at high pressure.
Can one flow meter handle both produced water and condensate?
Not in practice. Produced water is conductive and needs a magnetic flow meter. Condensate is non-conductive and needs a Coriolis mass flow meter. If you have a three-phase separator outlet, use separate meters on each leg.
Silver Automation Instruments helps you select the right flow meter for produced water, condensate, and other petroleum streams. Send your operating data and we will return a complete quote with datasheets, wiring diagrams, and installation notes.
