Light Crude Oil Flow Meter Custody Transfer Sizing Rules
Quick Answer: For light crude oil custody transfer, choose a Coriolis mass flow meter sized for 0.1% accuracy. Match the meter bore (usually DN50 to DN150) to your pipeline diameter and flow range. Key sizing factors are flow velocity, pressure drop, and fluid viscosity. Send your flow rate, pipe size (DN), pressure, and temperature to get a precise meter model recommendation.
Why Sizing Matters in Custody Transfer
Light crude oil is traded in large volumes. A measurement error of 0.5% on a 10,000 bpd stream can cost over USD 150,000 per year at current oil prices. Custody transfer demands meters approved to OIML R117-1 or MID standards, with traceable calibration. Coriolis meters meet this best because they measure mass directly. They ignore density, viscosity, and temperature changes that trouble volumetric meters.
Sizing Rules that Engineers Follow
Start with the pipeline’s inner diameter and design flow rate. A typical 6-inch (DN150) crude line moves 20 to 200 m³/h. You do not match the meter size to the pipe size. Instead, you select a smaller meter to push flow velocity into the 1 to 5 m/s range. This keeps the meter’s signal strong and accuracy within ±0.1%. A DN100 Coriolis sensor often fits a DN150 line for light crude.
We use ISO 5167-based calculations and manufacturer software. Enter fluid properties: density 820–870 kg/m³, viscosity 3–10 cP at 25–40°C. The tool computes pressure loss. For custody transfer, you want pressure loss under 0.5 bar to avoid flashing in the pipe. If loss exceeds that, go one size larger.
Real-World Example
A customer in Indonesia moves 3,000 bpd of light crude (SG 0.84, 8 cP) through an 8-inch pipe. Our sizing recommended a Silver Instruments CMF series DN80 Coriolis meter with 316L stainless steel wetted parts, PN16 flanges. Operating at 3.2 m/s, the meter delivers 0.1% mass flow accuracy and 0.05% repeatability. Pressure loss stays at 0.35 bar. The meter integrates with a flow computer via pulse output for batch custody transfer. We supplied the full package with ATEX Zone 1 certification and a Rosemount 3051S pressure transmitter for density compensation in net volume calculations.
Common Mistakes to Avoid
Installing an oversized meter is the top error. A meter that is too large runs at low flow velocity, where accuracy drops. Coriolis meters need a minimum Reynolds numb

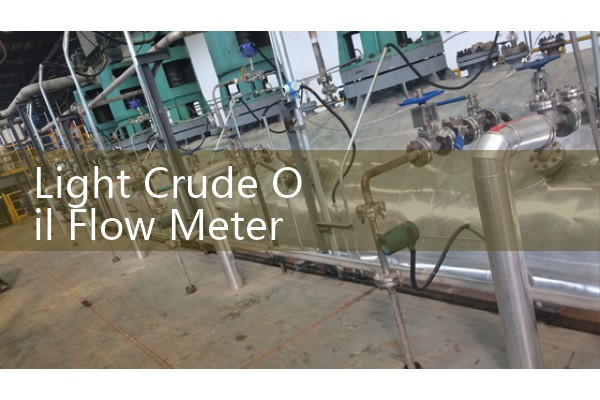

_600x400.jpg)
How to Get a Proper Sizing
Provide these six data points to our engineers: flow range (min, normal, max in kg/h or bpd), operating temperature, pressure, density (or API gravity), viscosity (cP or cSt), and pipe diameter (DN). We run the sizing through official Coriolis software and return a datasheet with accuracy curves, pressure loss, and recommended model. This service is free for genuine quotations.
FAQ
Q: Can I use a Coriolis meter for light crude oil with a viscosity below 10 cP?
Yes. Coriolis meters excel with low-viscosity fluids. Viscosity changes do not affect mass flow measurement accuracy. You only need to consider pressure loss in sizing.
Q: Do custody transfer rules require dual-meter proving?
OIML R117 suggests periodic proving with a master meter or prover. We often supply a compact prover skid with a Coriolis master meter for on-site verification. Ask us about the Silver Prover system.
Q: What is the turndown ratio for a properly sized meter?
A well-sized Coriolis meter handles 20:1 turndown while keeping 0.1% accuracy. At 50:1, accuracy may relax to 0.2%. Specify your minimum flow rate so we verify the meter’s performance at the low end.
Q: Is an upstream strainer necessary for light crude?
If your crudeline carries sand or wax particles, install a Y-strainer 10 pipe diameters upstream. This protects the meter tubes from erosion. We can supply a matched strainer with the meter.
Q: Can the meter output net oil volume after density correction?
Yes. With a built-in density function and a flow computer, the Coriolis meter calculates gross volume and net volume at standard conditions (15°C, 0 kPa). We configure the output: mass flow, density, temperature, and net volume via Modbus or 4-20 mA HART.
Send us your project details (pressure, temperature, viscosity, API gravity, pipe size, flow range) to get a custody transfer flow meter datasheet within 24 hours. Email [email protected] or visit the Silver Instruments website.
