Flow Meter Calibration Rig Design: Building Automated Water Loop Testing Benches
Quick Answer: A water loop calibration bench needs a stable flow path, a reference master meter, straight pipe sections, and automated data collection. Silver Automation Instruments typically recommends an electromagnetic flow meter or Coriolis mass meter as the reference for water loops from DN15 to DN100. For faster quoting, send your flow range in m3/h, line size in DN, pressure in bar, and water temperature in °C.
Why an Automated Water Loop Calibration Rig Makes Sense
Manual bucket testing works only for low flow rates and small pipe sizes. The operator must start a stopwatch, fill a bucket, weigh the water, and repeat the test at least five times. That process is slow and the results depend too much on human timing. An automated water loop removes most of that error.
Here is the thing. A water loop is not just a pump and a pipe. It is a controlled measurement environment. The loop must hold flow steady while the reference meter and the unit under test collect data at the same time. That time alignment improves repeatability.
We have seen this on customer sites many times. A poorly designed loop creates more questions than answers. Bubbles in the line, unstable pump speed, or a short straight run can shift readings by 1 percent or more. In practice, the pump curve matters more than the tank size.
Core Design Parameters for an Automated Water Loop
Start with the flow range. A bench built for DN15 to DN50 meters may need 0.1 to 30 m3/h. A bench for DN80 to DN100 meters may need 10 to 100 m3/h. The pump size follows the pressure drop of the loop plus the meter under test.
Most engineers skip this part. They focus on the meter and forget the water path. Straight pipe runs matter for electromagnetic, ultrasonic, and vortex meters. For a DN50 electromagnetic flow meter, keep at least 10 diameters upstream and 5 diameters downstream. If the meter is DN100, that means 1 m of straight pipe upstream.
Water temperature should be controlled or at least logged. Water at 20 to 30 °C is common for factory calibration. A PT100 sensor installed close to the meter gives the temperature input for correction algorithms. Water conductivity above 20 µS/cm is enough for most electromagnetic flow meters. Viscosity near 1 cP is typical for clean water and works for most liquid flow meter types.
Matching the Bench to the Flow Meter Type
Electromagnetic flow meters need a full pipe and stable conductivity. The loop pump should not introduce air. If the pipe runs uphill at the meter, air pockets will form and the reading will jump. A vertical upward flow path at the test section solves most of that problem.

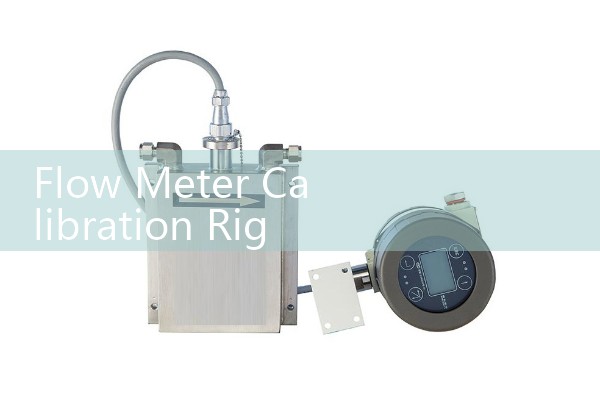

Coriolis mass flow meters read mass directly in kg/h. They are useful as the reference master because they are accurate across a wide range. Silver Instruments supplies Coriolis meters with 0.1 percent accuracy for water loop testing. But the manifold must be rigid. Pipe vibration from the pump can disturb a Coriolis meter.
Oval gear flow meters are positive displacement devices. They need clean water or a strainer upstream. Because they are mechanical, they may produce a pulse output. The PLC or counter must handle high frequency pulses at high flow. An oval gear meter on a water loop can verify repeatability quickly if the water has no particulates.
Ultrasonic flow meters need straight pipe and a clean pipe wall. In a test bench, clamp on sensors can be used with known pipe dimensions. But the signal weakens if the pipe surface is rough or if there are air bubbles.
Vortex flow meters need a minimum Reynolds number. For water loops, a DN25 vortex meter may not read below 0.5 m3/h. The calibration rig must cover the lower limit of the meter under test.
Instruments and Control Logic That Improve Repeatability
The reference meter and the unit under test should use 4-20 mA HART outputs or pulse outputs. HART allows remote reading of flow, temperature, and diagnostics from the control room. The PLC logs all values at one second intervals. A pressure transmitter with 0 to 10 bar range catches pump instability. A PT100 measures water temperature. Some benches also include a conductivity sensor if the unit under test is electromagnetic.
Because the goal is repeatable testing, the PLC should start the log only after the flow has been stable for 10 seconds. That delay removes ramp up noise. The test sequence can run at five flow poin
If the tested flow meter will be installed in ATEX Zone 1, the calibration bench itself does not need to be in the hazardous area. Calibrate the meter in a safe area with water, then install it with the proper ATEX certified housing and barriers.
Common Mistakes We See on Customer Sites
We have seen this on customer sites many times. Air bubbles are the biggest issue. They come from a leaking pump seal, a low tank level, or a return line that splashes into the tank. The return line should discharge below the water surface to avoid drawing air back into the pump.
Another mistake is using a tank that is too small. A 200 L tank may heat up after 30 minutes of circulation. That changes the water temperature and the viscosity. For a 10 m3/h loop, use at least a 500 L tank or add a cooling coil. In practice, a 1000 L tank makes the temperature more stable.
So do not ignore grounding. Electromagnetic flow meters need a good earth connection. If the pump motor shares a ground path with the meter, stray current can cause a wavering output. Use a separate ground rod or follow the meter manual exactly.
Recommended Silver Instruments Pairings for Water Loop Calibration
For a standard water loop from DN15 to DN80, a Silver Instruments electromagnetic flow meter with PTFE liner and 4-20 mA HART works as a reliable reference or unit under test. The accuracy class is 0.5 percent for most line sizes. Pair it with a PT100 sensor and a 0 to 10 bar pressure transmitter.
For high accuracy reference work, a Silver Instruments Coriolis mass flow meter with 0.1 percent accuracy reads directly in kg/h. It can also measure density and temperature. Use it as the master meter for oil, chemical, or water based test benches. For diesel or paint applications, a Silver Instruments oval gear flow meter can be tested on the same loop if the liquid is clean and viscosity stays below 1000 cP.
Last year a customer in Vietnam asked us for a skid mounted water loop to test DN50 electromagnetic flow meters. We specified a 7.5 kW pump, a 1000 L tank, a Coriolis master meter, and a PLC with HART input. The total loop length was 4.2 m. That setup replaced manual bucket testing and cut test time by about 60 percent.
A paint manufacturer in Southeast Asia needed a water loop to check oval gear flow meters before shipping. The bench used a DN25 Coriolis master meter from Silver Instruments and a 2 m3 tank. Because the water temperature changed during the day, the team added a PT100 and a small chiller. The repeatability improved from 1.2 percent to 0.3 percent across a 50 to 500 L/h range.
FAQ: Flow Meter Calibration Rig Design
Q: What is the minimum straight pipe length for a water calibration loop?
A: For electromagnetic and ultrasonic meters, allow 10 pipe diameters upstream and 5 diameters downstream. For a DN50 meter, that means 500 mm upstream and 250 mm downstream. For vortex meters, follow the meter manual because the required length may be longer.
Q: Can one water loop test multiple flow meter types?
A: Yes. A water loop with a Coriolis master meter can test electromagnetic, vortex, ultrasonic, and oval gear meters. But each meter type has different straight pipe and flow range needs. The loop should cover the lowest and highest flow points of all units under test.
Q: How accurate should the master meter be?
A: The master meter should be at least three times better than the meter under test. If you calibrate a 1.5 percent electromagnetic flow meter, a 0.5 percent master is acceptable. If you calibrate a 0.5 percent meter, use a 0.1 percent Coriolis master.
Q: What water quality is needed for a calibration bench?
A: Use clean water with conductivity above 20 µS/cm for electromagnetic flow meters. Keep the temperature between 20 and 30 °C. A 50 micron filter or strainer protects positive displacement meters. Avoid air bubbles and keep the pump suction flooded.
Q: How do I get a quote for a flow meter calibration rig or the flow meters?
A: Send Silver Instruments your line size in DN, flow range in m3/h, pressure in bar, temperature in °C, and target accuracy. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. You can also check flow-meter.com.au for product categories.
