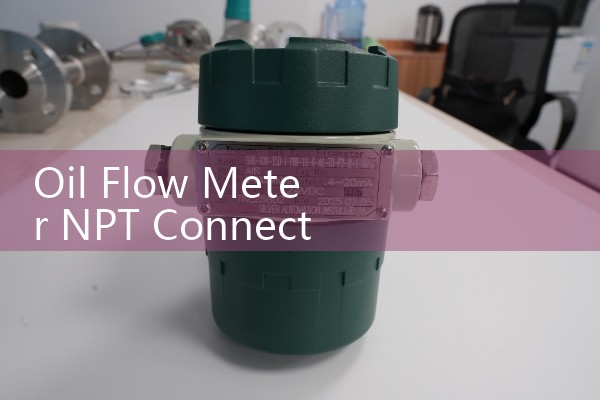

Oil Flow Meter NPT Connection: Sealing Tapered Threads on American Pipe Networks
Quick Answer: NPT (National Pipe Taper) threads seal by interference between the male and female taper, not by a gasket. Always apply a compatible thread sealant to the first few threads only. For oil flow meters with NPT connections, match the meter body material and sealant to your oil type, temperature, and pressure. Silver Instruments supplies oil flow meters with NPT threads from 1/4 inch up to 2 inch in stainless steel and carbon steel.
Why NPT Threads Are Still the Default on North American Oil Skids
Walk into any oil blending plant in Texas or a lube oil filling station in Mexico and you will see NPT connections everywhere. NPT is not the fanciest thread standard. It is not even the best for high-pressure gas. But for liquid oil lines up to 10,000 psi on small-bore instrumentation, NPT works and every fitter knows how to make it seal.
The taper does the work. The male thread has an outside diameter that gets larger toward the back. The female thread gets smaller inside. When you wrench them together, the crest and root of the threads crush into each other. That metal-to-metal contact creates the seal. There is no O-ring groove. No flat face. Just a wedge of steel or stainless steel biting into itself.
Most engineers skip one step and then blame the thread. They apply PTFE tape all the way to the end. That puts tape shreds into the oil stream. Over time, those shreds reach the positive displacement meter or the turbine rotor. We have seen this on customer sites many times. A oval gear meter jammed by a ribbon of PTFE tape. The meter was fine. The tape was the culprit.
How We Configure NPT Connections on Our Oil Flow Meters
At Silver Automation Instruments, we offer NPT threads on several oil flow meter families. Coriolis mass flow meters for lube oil blending come with 316L stainless steel process connections. For a DN15 Coriolis meter measuring 0 to 100 kg/h of engine oil at 80 °C, we supply 1/2 inch NPT male threads as standard. The wetted material is 316L. The secondary containment is 304 stainless. The thread sealant recommendation is a high-temperature anaerobic paste, not tape.
Oval gear meters for diesel bunkering often use 1 inch NPT or 2 inch NPT in carbon steel. Here the oil is thicker, maybe 50 cP at 30 °C. The meter body is cast iron or carbon steel. The NPT threads on a 2 inch oval gear meter need a sealant that resists diesel washout. We send a small tube of Loctite 567 with the meter. It cures slowly and fills the spiral leak path completely.
Turbine flow meters for hydraulic oil test benches use smaller NPT sizes: 1/4 inch and 3/8 inch. A customer in Vietnam builds power pack test rigs. He uses our turbine meter with 3/8 inch NPT female ports. The oil is ISO VG 46 at 40 °C, flowing 2 to 20 L/min. He seals the threads with a medium-strength sealant and checks each joint with a bubble test at 2x working pressure.
The Practical Difference Between NPT and BSPT That Oil Technicians Need to Know
NPT has a 60° thread angle with flattened peaks and valleys. BSPT (British Standard Pipe Taper) also has a 55° angle with rounded peaks. Some oil systems in Southeast Asia mix both because the equipment comes from different origins. A pump from the UK with BSPT threads will not seal on an NPT fitting. At first it feels like it threads in. After two turns it locks. Then the technician forces it and strips the first few threads.
We put a warning label inside the meter box. It reads: *Confirm thread standard before applying sealant. NPT and BSPT are not interchangeable.* We also mark the thread type on the meter body near the process connection. For meters shipped to Saudi Arabia and the UAE, we include a small thread gauge card.
Here is the thing: American pipe networks use NPT not just on meters but also on strainers, check valves, and pressure transmitters. We often ship a complete skid where the Coriolis meter, the upstream strainer, and the downstream back-pressure valve all share the same 1 inch NPT manifold. This reduces leak points and makes maintenance simpler for the local crew.
Sealant Selection for Different Oil Types
Mineral hydraulic oil at 50 °C and 20 bar is forgiving. PTFE tape applied correctly works. Wrap the tape clockwise starting one thread back from the end. Two wraps only. Do not overhang the first thread. The oil will swell the tape slightly and improve the seal.
Synthetic ester turbine oil is aggressive. It can dissolve certain pipe dopes. We recommend a PTFE-based paste with a temperature rating of at least 150 °C. For a Coriolis meter measuring synthetic lube oil at 120 °C in a gas turbine package, we specify a paste rated for 200 °C. A customer in Oman ran a test with three sealants. The generic tape softened after six weeks. The PTFE paste held for the full 12-month inspection cycle.
Heavy fuel oil at 80 °C with a viscosity of 380 cSt requires a different approach. The oil is sticky and carbon-rich. It can gum up the exposed threads during disassembly. We advise using a nickel-based anti-
Installation Steps That Prevent Thread Galling and Leaks
Galling is a real problem on stainless steel NPT threads. It happens when the surface oxide layer tears and the bare metal cold-welds under torque. We see this most on 316L Coriolis meter bodies connected to 316L fittings. The fix is simple: apply a nickel anti-seize or a PTFE paste to the male thread before assembly. Do not install stainless NPT threads dry. Ever.
Hand-tighten first until the joint feels snug. Then apply a wrench. The general rule is two to three turns past hand-tight for NPT. Do not bottom out the threads. Bottoming out means you have deformed the thread geometry and the seal is now unpredictable. Tighten until you feel a solid increase in resistance, then stop.
After hydrostatic testing, mark the joint position with a paint pen. This gives the operator a quick visual reference. If the mark moves later, the joint has loosened. We have seen skids in Nigeria where vibration from a reciprocating pump backed out NPT joints over a few months. The paint mark caught the problem before the oil leak became a spill.
Common NPT Mistakes on Oil Flow Meters and How to Avoid Them
Mixing NPT and NPS threads. NPS is straight, not tapered. It seals with an O-ring or a bonded washer. A taper-threaded flow meter into a straight-threaded port will leak from day one. Label the meter port clearly.
Using too much tape. Multiple thick layers prevent proper thread engagement. The tape acts like a lubricant and you over-tighten without realizing it. The joint may pass a low-pressure test but fail at operating pressure.
Reusing NPT fittings without cleaning. Old sealant residue creates a lumpy thread surface. The taper sits on the lumps, not on the metal. Remove all old sealant with a wire brush and a solvent wipe before reassembly.
Ignoring thermal cycling. An NPT joint that sealed at 25 °C may weep at 100 °C. The oil heats the meter body. The body expands faster than the fitting. The taper shifts slightly. A spring-loaded seal washer is not possible here, but a flexible paste sealant can absorb the micro-movement. Select the sealant with the full temperature range in mind.
When to Specify NPT vs. Flanged vs. Sanitary Connections on Oil Meters
For pipe sizes DN15 to DN50, NPT is usually the most compact and least expensive option. A 1 inch NPT oval gear meter costs less than the same meter with 1 inch ANSI 150 flanges. The NPT version also fits into tight pump skids where flange bolts would be difficult to tighten.
For pipe sizes DN80 and above, the NPT threads become large and require high installation torque. You now need a 24-inch pipe wrench and strong hands. At this size, flanged connections are easier to seal and remove. We guide customers toward raised-face flanges for meters 3 inch and larger in crude oil or fuel oil service.
A paint manufacturer in Southeast Asia asked us for a 2 inch NPT Coriolis meter on a batch blending system. They fill 200-liter drums with printing ink. The oil-based ink has a viscosity of 3,000 cP. The 2 inch NPT connection made it possible to drain the meter completely between batches. A flanged meter would have left a pocket of old ink, contaminating the next color. The NPT connection gave a smooth internal transition and full drainage.
Silver Instruments Oil Flow Meters with NPT Connections — Typical Configurations
We configure oil flow meters daily. Here are realistic combinations that work:
• Coriolis mass flow meter, model SICM, DN15, 1/2 inch NPT male, 316L, for 0–100 kg/h engine oil at 80 °C, accuracy ±0.2%, 4–20 mA HART output, ATEX Zone 2 option
• Oval gear flow meter, model SIOG, DN25, 1 inch NPT female, cast iron, for 20–200 L/min diesel, accuracy ±0.5%, pulse output, mechanical totalizer
• Turbine flow meter, model SITW, DN10, 3/8 inch NPT female, stainless steel, for 2–20 L/min hydraulic oil, accuracy ±1.0%, 4–20 mA output, IP65
• Positive displacement vane meter, model SIPD, DN50, 2 inch NPT male, carbon steel, for HFO up to 380 cSt at 90 °C, mechanical register, high-temperature gears
Each meter includes a material test certificate, a calibration certificate traceable to ISO 17025, and a dedicated thread sealant patch. The sealant is pre-applied on request. We also ship a matching NPT nipple, union, or strainer if you want a plug-and-play package.
FAQ
Can I use NPT threads on a meter for edible oil?
Yes, but only with 316L stainless steel wetted parts and a food-grade thread sealant. We supply oval gear meters with NPT connections for palm oil loading in Malaysia. The sealant is NSF H1 registered.
What is the maximum pressure for a 1 inch NPT oil meter?
A 1 inch NPT joint in stainless steel can hold up to 10,000 psi if the mating fitting is rated accordingly. Our standard Coriolis meters with 1 inch NPT are tested to 100 bar (1
