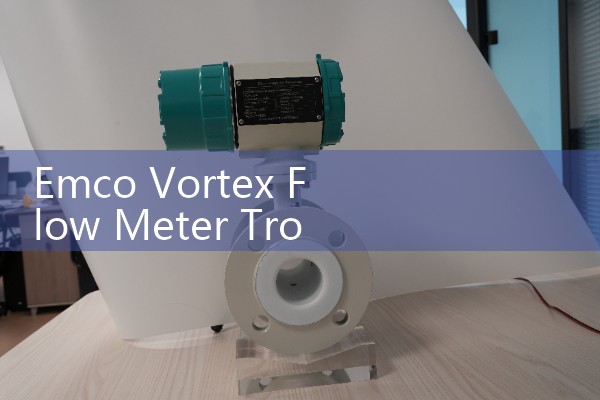

Emco Vortex Flow Meter Troubleshooting: Resolving Signal Drops and Noise Interference
Quick Answer: Most Emco vortex flow meter signal drops come from four places: a loose or wet sensor cable, flow below the low flow cutoff, vibration near the bluff body, or electrical noise on the 4-20 mA HART loop. Tighten the sensor and terminal connections first. If the meter is over 8 years old and the signal drops happen below 2 m/s, request a replacement vortex flow meter quote from Silver Automation Instruments.
Common Causes of Signal Drops in an Emco Vortex Flow Meter
We have seen this on customer sites many times. A plant runs for months with a stable reading. Then a signal drop appears during a rain storm or a washdown cycle. The cause is usually moisture inside the cable gland or a loose terminal on the preamplifier. Emco vortex flow meters use a small charge signal from the piezoelectric sensor. A drop of only a few millivolts matters. If the cable gland is cracked or the cable has a flat spot, replace the gland and re-terminate the cable.
Most engineers skip this part because the meter looks dry from the outside. Use a torque screwdriver on the sensor and 4-20 mA terminals. Silver Automation Instruments recommends checking the resistance between the sensor wires and the housing during a shutdown. A reading below 1 megaohm often means moisture intrusion.
Signal Drops Below the Low Flow Cutoff
Every vortex flow meter has a minimum measurable flow based on the pipe diameter and fluid density. For a DN50 meter on compressed air, the cutoff may sit around 6 m/s to 8 m/s depending on pressure. If the flow drops below that value, the meter may hold the last reading or drop to zero. Engineers sometimes mistake this for a fault. In practice, check the process trend first. If the drop corresponds to a batch stop or a valve closing, the meter is behaving correctly.
Raise the low flow cutoff only when the signal is noisy. Lowering the cutoff below the factory setting will not help. You will get random pulses from process noise and the 4-20 mA output will jump.
Noise Interference from VFDs, Motors, and Ground Loops
Electrical noise is a common cause on skids where a VFD sits within 2 meters of the flow meter. Use shielded twisted pair cable for the 4-20 mA HART loop. Ground the shield only at one end, normally inside the control room or the PLC cabinet. If the shield is grounded at both ends, a ground loop can inject 50 Hz or 60 Hz noise into the signal.
For remote mount Emco vortex flow meters, route the sensor cable away from motor cables and VFD output cables. Keep a minimum distance of 300 mm. If the cable must cross, do it at a right angle. A desalination plant in Saudi Arabia had a 4-20 mA signal oscillation at 12 m3/h. The cause was a VFD cable running parallel to the flow meter cable for 8 meters. After rerouting the cable, the signal settled.
Mechanical Vibration and Pipe Strain
Vortex flow meters count vortices shed from the bluff body. External vibration from pumps, control valves, or pipe strain can generate false vortex signals. The result is a flow reading even when the pipe has no flow, or a dropout when the amplifier tries to reject the noise.
For a DN80 Emco vortex flow meter, check the supports on both sides of the meter. Use pipe supports that are not clamped directly to the meter body. If vi
Process Conditions That Look Like Signal Loss
Wet steam, two phase flow, and cavitation can cause real signal drops. A food plant in Malaysia saw random dropouts on a steam line at 8 bar. The steam was wet because the trap station was undersized. The water slugs hitting the bluff body caused the signal to collapse for a few seconds. Installing a steam separator and a proper drip leg solved the problem.
So before replacing the meter, check the process pressure and temperature. The meter may be installed in a location where liquid flashes or gas bubbles form. In those cases, no flow meter will read correctly. Move the meter to a stable pressure point or condition the flow.
When to Replace the Emco Vortex Flow Meter
If you have checked the cable, the low flow cutoff, the grounding, and the process conditions, and the signal still drops, the sensor or the amplifier may be weak. Vortex sensors can degrade after 8 to 12 years of service, especially on steam lines with high temperature. In these cases, repair costs can exceed 60 percent of a new meter. Silver Automation Instruments supplies replacement vortex flow meters for water, steam, air, and light chemicals. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range.
Our technical team matches the meter body material, process connection, and 4-20 mA HART output to your current installation. We serve customers in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Contact Silver Automation Instruments for Vortex Flow Meter Support
If you need a replacement Emco vortex flow meter or a spare sensor, contact Silver Automation Instruments. Call Tel: +86-25-68650347. Use WhatsApp: +86-25-52155837 or WeChat: +86 15365082610. Tell us the pipe size, fluid, flow range, and output signal. We will reply with a quote within 24 hours. For product data sheets, visit flow-meter.com.au or send your process details.
FAQ: Emco Vortex Flow Meter Signal Drops and Noise
Why does my Emco vortex flow meter drop to zero during normal flow? Check the sensor cable and amplifier terminals first. A loose connection or moisture in the cable gland can cut the small charge signal from the sensor.
What is the most common cause of 4-20 mA signal oscillation? Electrical noise from VFD cables or a ground loop on the shield. Use shielded twisted pair cable and ground the shield only at one end.
Can vibration cause false flow readings on an Emco vortex flow meter? Yes. Pumps, control valves, and pipe strain can generate false vortex signals. Check pipe supports and keep the meter isolated from mechanical vibration.
Should I lower the low flow cutoff to stop signal drops? No. Lowering the cutoff below the factory setting will increase noise and random pulses. Check the actual process flow first.
When should I replace an Emco vortex flow meter instead of repairing it? If the meter is over 8 years old, the sensor signal is weak, or repair costs exceed 60 percent of a new meter. Silver Automation Instruments offers replacement vortex flow meters matched to your pipe size and output.
