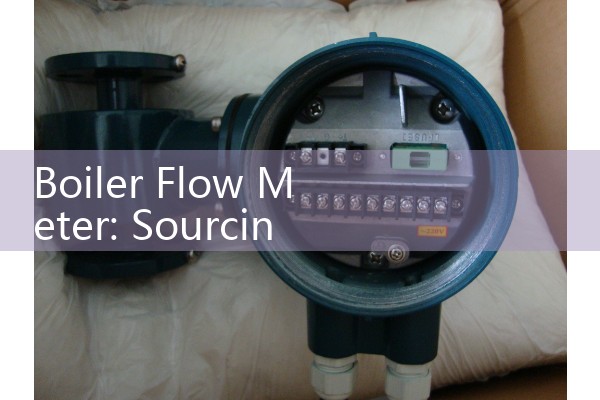

Boiler Flow Meter: Sourcing Thermal Loop Efficiency Processing Sensor Manuals
Quick Answer: A boiler flow meter measures feedwater, condensate, steam, and fuel gas flow. The right flow meter combined with sensor manuals and loop checks raises thermal loop efficiency and cuts fuel waste. Silver Instruments supplies electromagnetic, vortex, and thermal mass flow meters for boiler plants in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Which Flow Meter Works for Boiler Feedwater and Condensate
Electromagnetic flow meters are the normal choice for boiler feedwater and condensate lines. They work when water conductivity stays above 5 µS/cm. Most boiler feedwater in industrial plants meets this limit without any issue.
We have seen many customers start with an inline electromagnetic flow meter from DN15 up to DN300. The meter body has no moving parts. The liner options include hard rubber and PTFE. For high temperature condensate, use a PTFE liner and stainless steel electrodes.
A food processing plant in Thailand ordered two electromagnetic flow meters for boiler feedwater and steam condensate return. They used a DN50 meter on feedwater and a DN40 meter on the condensate line. Both outputs run 4-20 mA HART into a local PLC. That setup gives total water and heat balance data in one place.
Why Steam Flow Measurement Needs a Vortex Meter
Steam flow measurement in a boiler house normally uses a vortex flow meter. Vortex meters handle saturated steam and superheated steam without a separate temperature correction when you order the version with integrated PT100 and pressure input.
In practice, most boiler plants run steam pressure from 4 bar to 25 bar. A vortex flow meter with 316L body and a maximum temperature of 350 °C covers this range. Specify the flow range in kg/h. A DN80 vortex meter often covers 200 kg/h to 4000 kg/h for a small to mid size boiler.
Here is the thing. Steam meters fail when the pipe size is oversized. A boiler rated at 2000 kg/h does not need a DN150 steam meter. We usually recommend a DN80 or DN100 vortex meter for that load. This keeps the meter within its better accuracy range and avoids low flow cutoff problems.
A chemical plant in Indonesia replaced a DP transmitter with a vortex flow meter on a 10 bar saturated steam header. They reported better low boiler load readings and a clear totalizer value for monthly fuel reports.
Thermal Loop Efficiency Starts with the Right Sensor Signal
Boiler thermal loop efficiency depends on accurate gas and air measurement. A thermal mass flow meter works well for natural gas, LPG, or biogas going to the burner. It gives direct mass flow in kg/h or Nm3/h without a separate pressure or temperature transmitter.
Most engineers skip this part. They only watch stack temperature and ignore combustion air and gas flow balance. A thermal mass flow meter on the burner gas line closes that gap. The sensor has no moving parts and can include a PT100 for gas temperature data.
We have seen this on customer sites many times. A boiler operator in Vietnam measured fuel gas with a turbine meter for years. The turbine meter needed frequent cleaning because of dirty gas. After switching to a thermal mass flow meter with a 4-20 mA HART out
Processing Sensor Manuals and Loop Checks Before Commissioning
Factory manuals matter for boiler flow meter commissioning. The manual has wiring diagrams, zero and span settings, K factor tables for vortex meters, and empty pipe detection notes for electromagnetic meters.
We ship each boiler flow meter with a printed manual and a default parameter sheet. The default sheet lists pipe diameter in DN, flow range in kg/h or m3/h, analog output range, pulse rate, and alarm settings. Buyers can pass this sheet directly to their instrument team.
Loop checks should happen before the burner starts. Power the meter with 24 V DC. Check the 4-20 mA output at zero flow. For a vortex meter, verify the K factor matches the pipe size. For an electromagnetic meter, check empty pipe detection with a dry pipe signal. For a thermal mass meter, confirm the zero cut point is set right because low gas flow at pilot stage can drift.
Because boiler shutdowns are expensive, most plants do loop checks during scheduled maintenance. We have seen a water treatment plant in the Philippines finish a full steam meter loop check in under four hours using our drawings and WhatsApp support.
Recommended Models and Ordering Data
Silver Instruments offers three boiler flow meter families. For steam, choose the SIA-VF vortex flow meter with integrated temperature and pressure compensation. For feedwater and condensate, choose the SIA-EMF electromagnetic flow meter with PTFE or hard rubber liner. For fuel gas and combustion air, choose the SIA-TMF thermal mass flow meter with 4-20 mA HART and PT100 input.
To get a fast quote, send us your pressure in bar, temperature in °C, pipe size in DN, and flow range. For steam, include saturated or superheated condition. For water, include conductivity and liner preference. For gas, include gas type and operating pressure.
Contact Silver Automation Instruments today. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610.
Frequently Asked Questions on Boiler Flow Meters
Which flow meter is best for boiler steam measurement?
A vortex flow meter works best for saturated and superheated steam. It handles high temperature and gives a pulse or 4-20 mA HART output with optional temperature and pressure compensation.
Can one flow meter measure both boiler feedwater and condensate?
Yes. An electromagnetic flow meter measures both. The key is liner and electrode material. High temperature condensate needs PTFE liner and stainless steel electrodes.
What data do I need for a boiler flow meter quote?
Send pressure in bar, temperature in °C, pipe size in DN, and flow range in kg/h or m3/h. Include steam condition if the application is steam.
Do you supply sensor manuals with the flow meters?
Yes. Every boiler flow meter ships with a printed manual and a default parameter sheet. We also send wiring drawings for 4-20 mA HART and pulse outputs.
Can Silver Instruments ship to Africa and the Middle East?
Yes. We ship to Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We provide trackable express courier and full export documentation.
